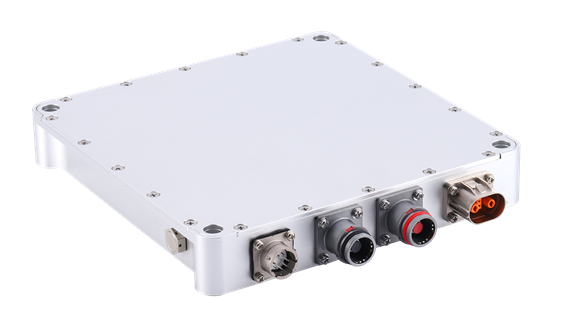

400-850VDC to 14V214A
DE13K0-14BC
EV On-board DC-DC Converter
Features
Programmable battery charging current#Galvanic isolation between input and output#Input polarity reverse protection#Input and output protections#CAN2.0B interface#Bootloader via CAN bus#IP67 enclosure, conduction cooling
Programmable battery charging current
Galvanic isolation between input and output
Input polarity reverse protection
Input and output protections
CAN2.0B interface
Bootloader via CAN bus
IP67 enclosure, conduction cooling
Technical Specifications
Input Voltage Range: 400-850VDC
Efficiency: 93.0%
Output Power: 3.0kW
Ingress Protection: IP67
Output Voltage: 14V
Dimensions: 248.45 x 223.00 x 37.30 mm
Control Method: CAN
Operating Temperature: -40°C~+85℃
